Re: {Chrysler 300} 1962 Astradome Electrical

The headlamp switch does not make noise and replacing it will not stop it. You are hearing the oscillator in the power supply, sorta the noise older camera flashes made while charging up. My guess is the capacitor makes the noise but John Grady can confirm.

The extra ground John calls for is because if the single ground provided by Mother Mopar goes open the instruments can burn up.

-----Original Message-----
From: "'dave mason' via Chrysler 300 Club International" <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
Sent: Monday, July 21, 2025 2:45pm
To: "Club" <chrysler-300-club-international@xxxxxxxxxxxxxxxx>
Subject: Re: {Chrysler 300} 1962 Astradome Electrical

Matt,

Looks like the gauge with the extra EL blade is the Amp gauge.

Sent from my iPhone

On Jul 21, 2025, at 14:41, dave mason <forwardlook300@xxxxxxxxx> wrote:

Hi Matt did anyone write you back?
Speedometers usually have a wire that goes through the back of the housing and has a red plastic terminal that plugs into the gauge (oil I think) with the extra blade for EL lights… I can double check that…

Someone else can chime in about the high pitched hum at the switch but my guess is that is somewhat common. Maybe the switch could use a little cleaning or a shot of DeOxit5.

Also don’t forget your ground wire! In fact install an extra as John Grady has suggested in the past.

D&K

Sent from my iPhone

On Jul 21, 2025, at 00:07, 'Matt Allyn' via Chrysler 300 Club International <chrysler-300-club-international@xxxxxxxxxxxxxxxx> wrote:

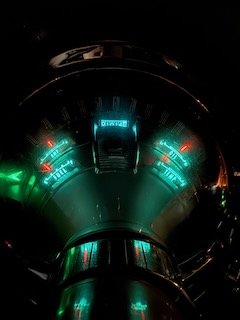

Reinstalled my fixed up Astradome, Gauges & Speedometer.
All is working A-OK, except….

All illuminates bright & lovely except the Speedometer face itself.

Even the Odometer lights up.

Maybe I missed one of the white wires with red end that plugs in underneath somewhere?

There is an audible whine.

Sounds like it is coming from the headlight switch.

When I turn its rheostat to the brightest position, it whines.

When I turn the rheostat to the dimmest position, the whine goes away.

I need to change out the Headlight Switch?

Or is that an indication of the Astradome Power Pack?

(Though it really does sound like it comes from the Headlight Switch versus under the Kick Panel / Power Pack location)

Thanks!

Matt Allyn

--
